  • Full Auto Flap Disc Making Machine 100-180mm
  • Full Auto Flap Disc Making Machine 100-180mm
Full Auto Flap Disc Making Machine 100-180mm Full Auto Flap Disc Making Machine 100-180mm

Full Auto Flap Disc Making Machine 100-180mm

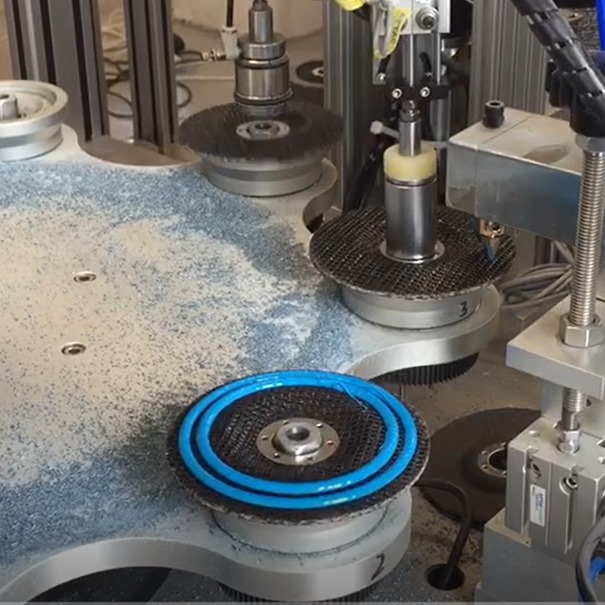

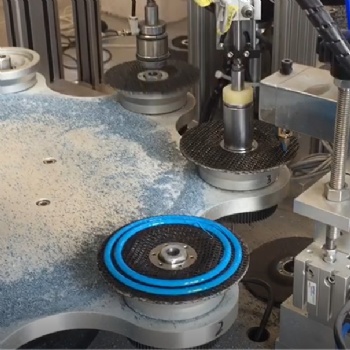

  • This Machine is making to produce flap disc automatically, high efficiency
  • INQUIRY

Basic information for automatic flap disc machine



Ø  Working Capacity: up to 11-14pcs/mins

Ø  Flap Disc Size: Φ100mm~Φ180mm, T27/T29

Ø  Flap length: 14-22mm

Ø  Belt width: 11-35

Ø  Backing pad materials: fiberglass backing pad and plastic backing pad

Ø  Backing size: 90-170mm

Ø  Glue pump: 280KG

Ø  Power: 6kw;  380 V - 50Hz, 3 phase

Ø  Glue Qty: 4-30g(±0.02g), able to adjust

Ø  Machine G.W:1000KG

Ø  Machine N.W: 800KG

Ø  Machine Size: L 1300* W 1400* H 1500mm

Ø  Machine color: Blue or White or other requested color

Ø  Packing: wooden case with pallet

Ø  Packing volume: 6CBM




We also produce related material for making flap discs, fiberglass backing pad and single component epoxy adhesive glue etc....


FIBERGLASS DISC is made by high quality fiberglass farbic and phenolic resin.
It suitable for making below products:

·       Flap disc
·       Nonwoven flap disc
·       Felt discs
·       Clean stripe discs


We have 2 types for your choice:
T-27 - Flat shape
T-29 - Conical or Tapered shape



Specifications:

Product SizeInner Hole layersRingsFlap Disc Size
75mm16.2mm5-8 1-2 or special100*16mm
80mm16.2mm6-81-2 or special100*16mm
88mm16.2mm6-81-2 or special100*16mm
90mm-94mm16.2mm6-91-2 or special100*16mm
105-107mm22.2mm7-101-2 or special115*22mm
115-118mm22.2mm7-121-2 or special125*22mm
170mm22.2mm7-131-2 or special180*22mm
220mm22.2mm10-131-2 or special230*22mm


Abrove are the common size used in the market, we provide OEM service,

We can satisfy specific request for backing pads with variable number of layers and different dimensions.
